CleanLine Pro 3/16" Up-Cut Carbide Micro Bearing Pattern Router Bit

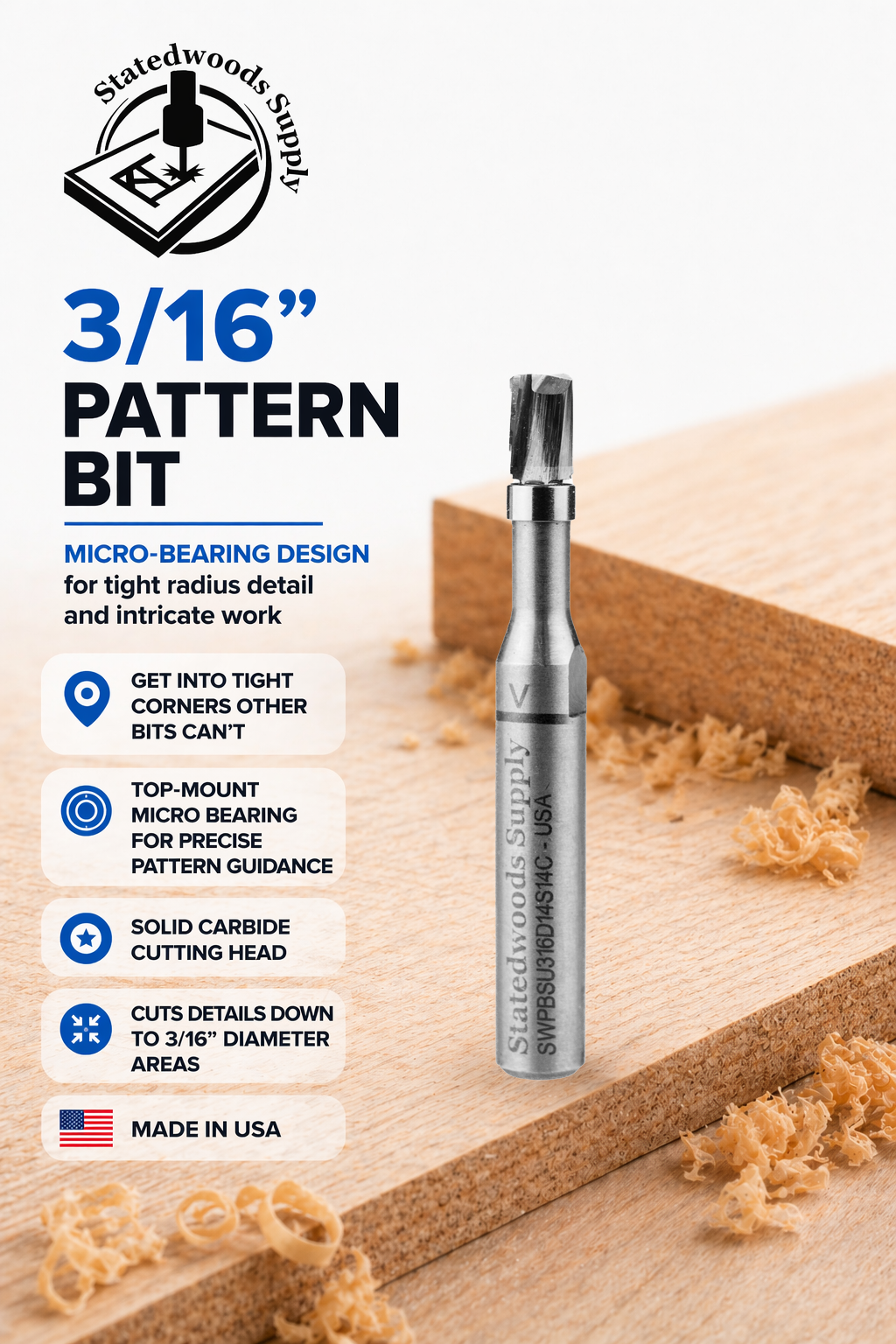

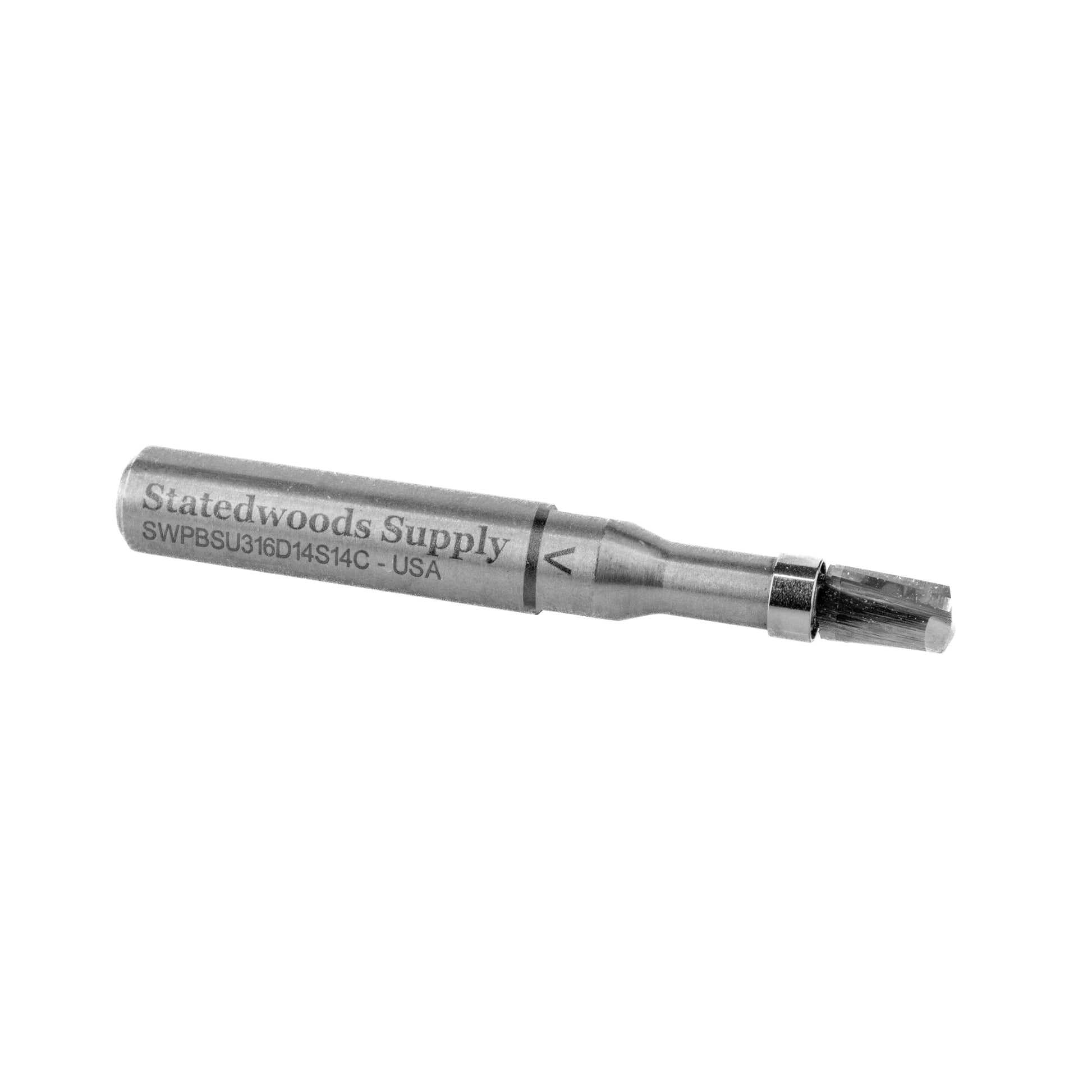

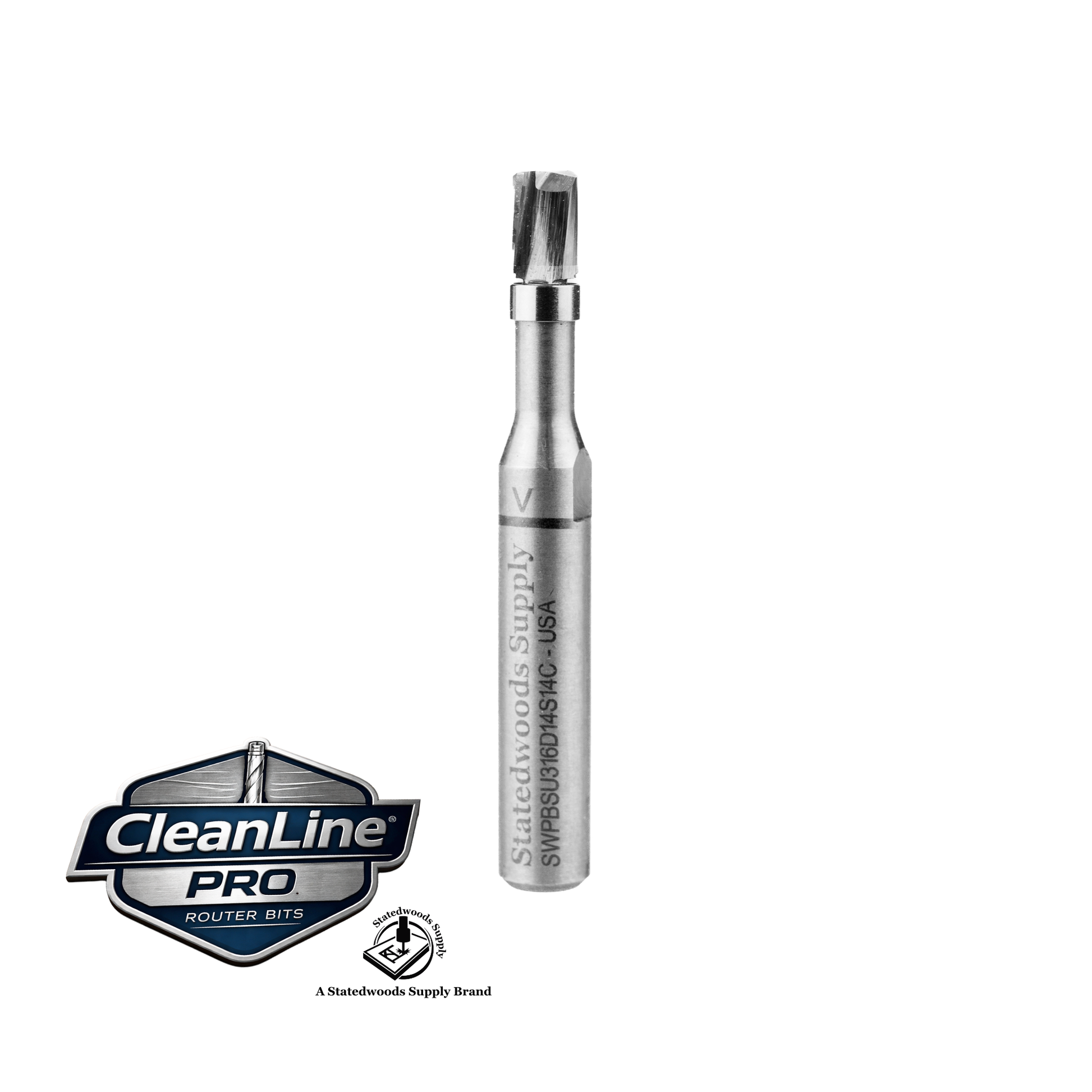

Statedwoods Supply's CleanLine Pro 3/16" Micro Pattern Router Bit

Dial in the finest details with the CleanLine Pro 3/16" Pattern Bit, built specifically for precision template work in tight spaces. Designed for use in trim routers, this micro-diameter bit excels where larger bits simply can’t reach—making it the perfect solution for intricate patterns, inlays, and detailed routing work.

The ultra-small 3/16" cutting diameter allows you to clean up tight inside corners and reproduce templates with exceptional accuracy. Whether you're refining inlay pockets or duplicating complex shapes, this bit delivers crisp, repeatable results.

Crafted with a premium carbide cutting head and a precision micro-bearing guide, this bit follows templates smoothly while maintaining clean edges and consistent cuts. The compact size and 1/4" shank make it ideal for trim routers and light-duty precision applications.

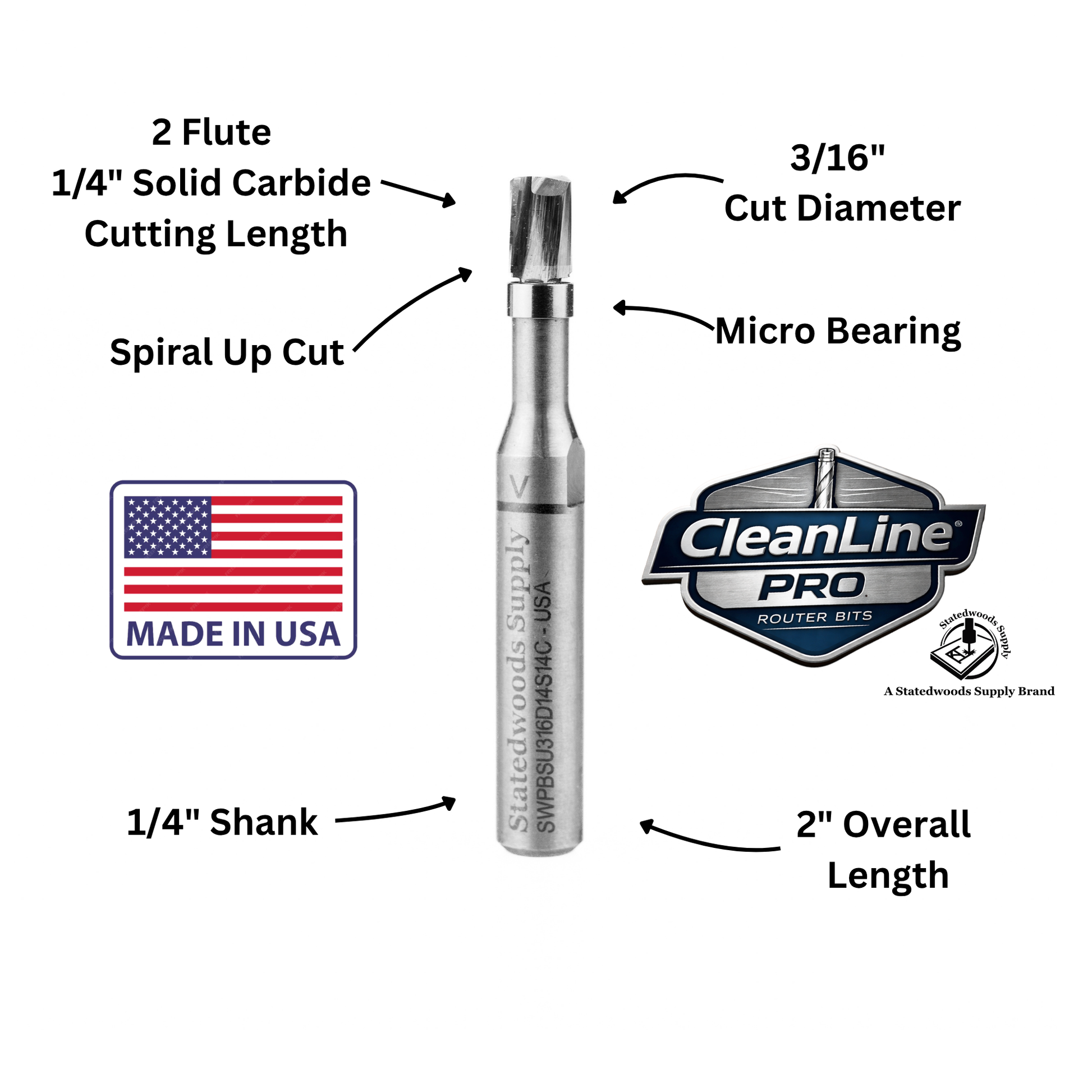

Key Features:

• 3/16" Cutting Diameter – Perfect for tight corners and fine detail work
• Micro-Bearing Guide – Ensures accurate template following
• 2-Flute Design – Smooth, controlled cutting performance
• 1/4" Shank – Optimized for trim routers
• Solid Carbide Cutting Head – Long-lasting sharpness and durability
• Ideal for Inlays & Pattern Work – Reproduce templates with precision and consistency

Perfect For:

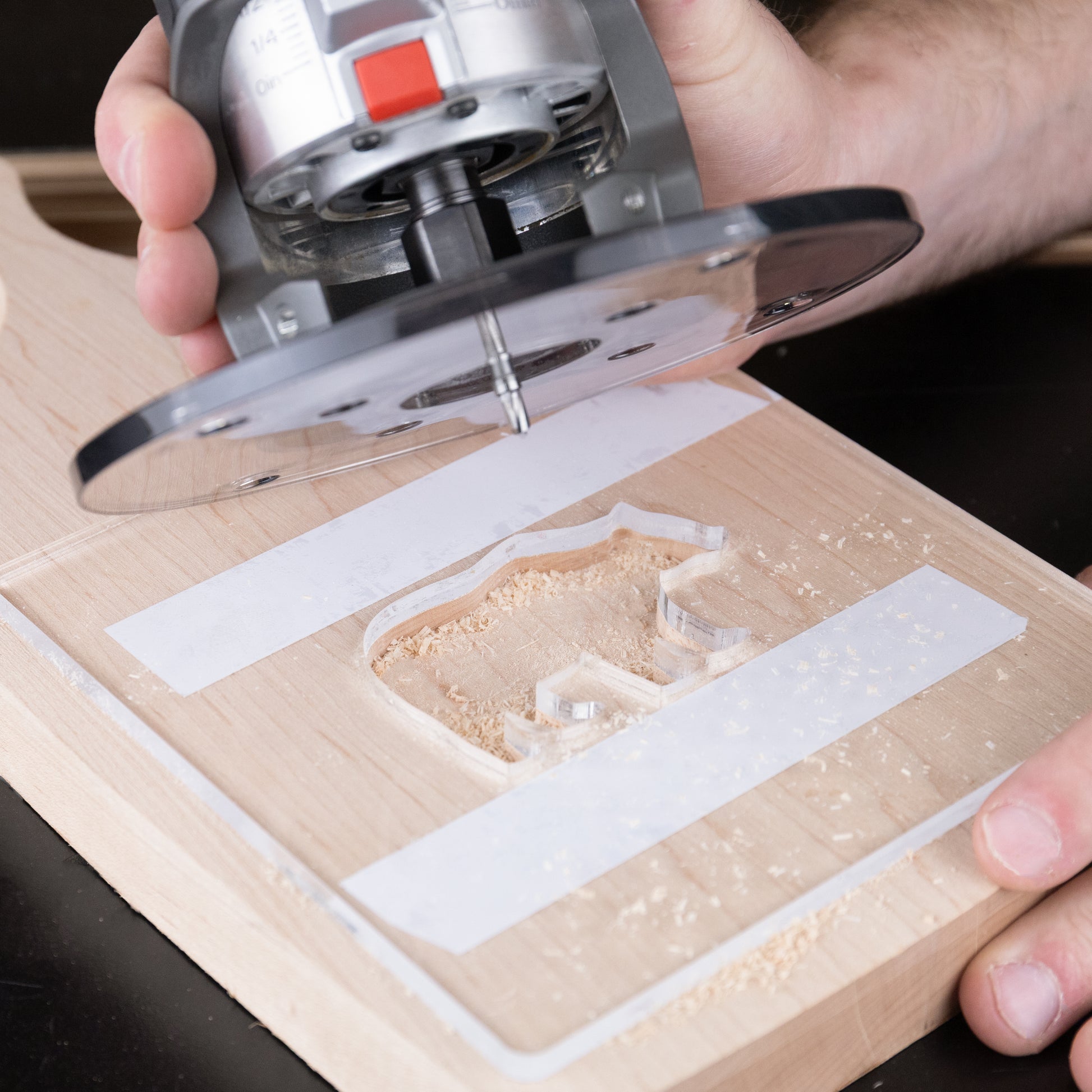

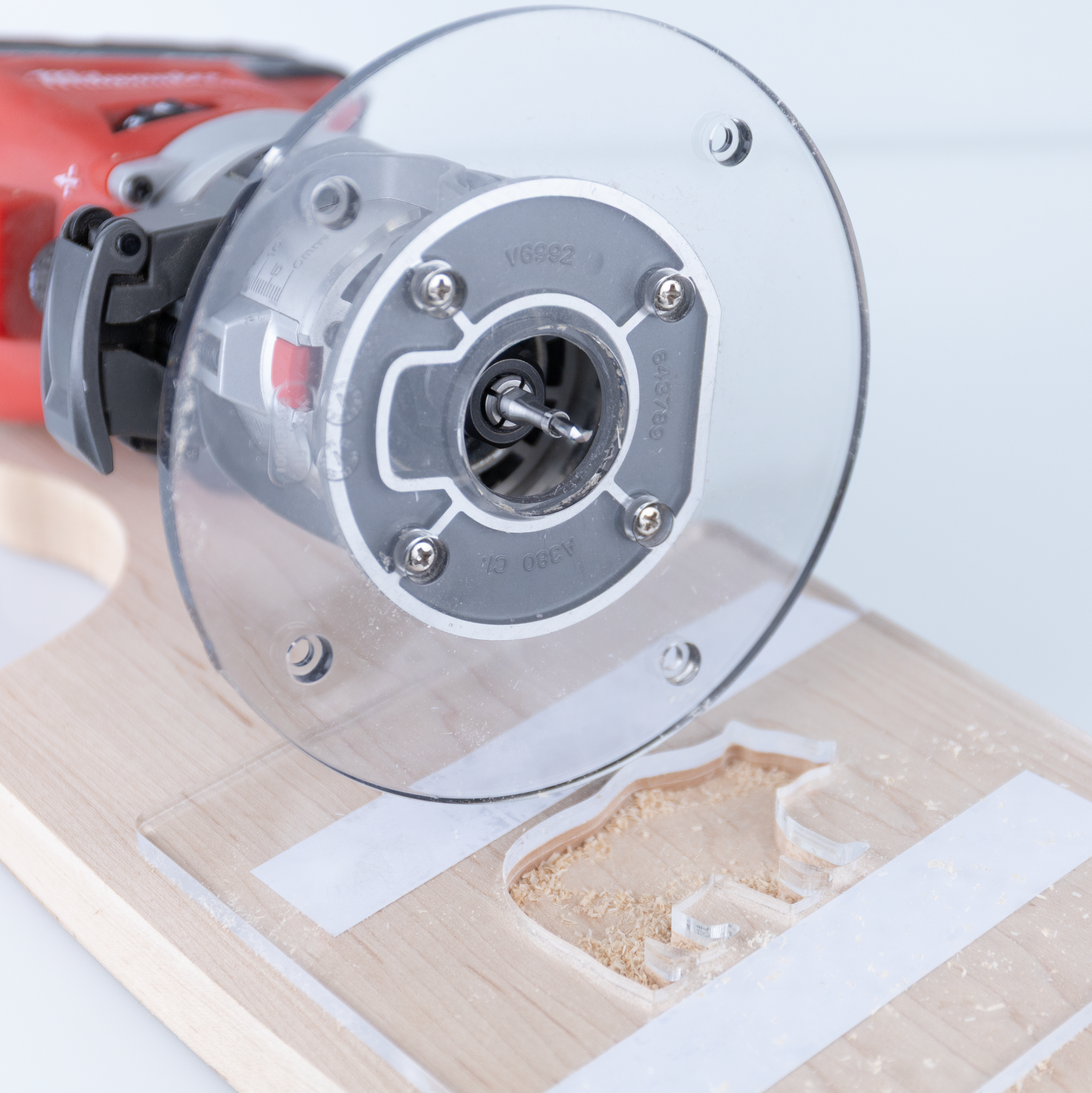

• Inlay work and fine detail routing
• Tight radius pattern cutting
• Template duplication
• Hardwood, softwood, plywood, and MDF

⚠️ Important Use Warning:

This is a micro-diameter bit and is more fragile than larger router bits.

• Take very light passes only
• Do NOT force the cut
• Avoid aggressive feed rates or deep cuts
• Always ensure proper router speed and stable setup

Failure to follow these guidelines can result in bit breakage due to the small 3/16" diameter.

Important Safety and Care Information:  The small 3/16" diameter size can be sensitive to side load force because of its thin construction.  Be very aware of this when cutting thick material or taking too much material in one pass.  Statedwoods Supply does not warranty this bit after use do to possible improper use.  To extend the life of your bit, cut material that is less than half the bit’s diameter. Cutting on both sides of the bit generates excess heat, which can dull the bit faster and increase the risk of kickback due to the bit pulling material in the direction of spin. It’s also recommended to avoid using routers or shapers over 2 horsepower, as high-torque machines can cause damage, breakage, and shorten the bit’s lifespan.
