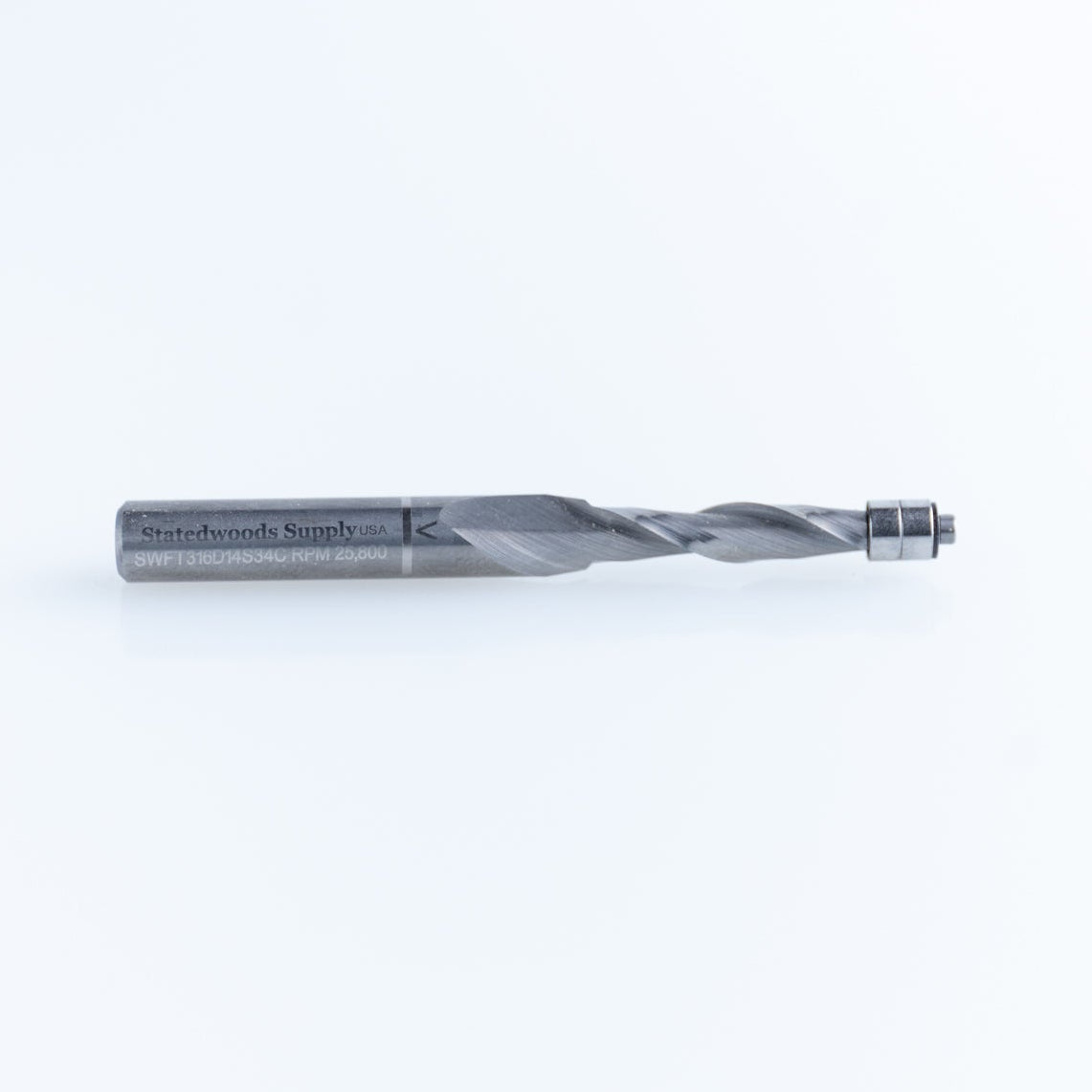

CleanLine Pro 3/16" Up-Cut Carbide Micro Bearing Flush Trim Router Bit

Statedwoods Supply's CleanLine Pro 3/16" Spiral Up-Cut Flush Trim Router Bit

This is the bit everyone has been looking for!  This 3/16" bit is perfect for getting into those tight places.  Achieve clean, precise template routing with the 3/16" CleanLine Pro Solid Carbide Spiral Flush Trim Router Bit from Statedwoods Supply. Engineered for accuracy and durability, this 2-flute spiral flush trim bit delivers exceptionally smooth cuts while minimizing tear-out in hardwood, softwood, plywood, and composite materials.

The 3/16" bit is designed to help get into tight routing situations and is not designed for large flush trim projects.  The small diameter of the bit is great for the hard to reach places on projects, but its small diameter also limits the amount of side force that can be applied before breaking.  Always trim your workpiece so the material needing to be removed is less that half the diameter of the bit.  This will help the longevity of the bit and help reduce breakage.

The up-cut spiral geometry attacks the wood at an angle, reducing the force in one location(like a straight flute bit), making the bit safer to use and helping to avoid kickback.  The angle helps to keep the bit cooler by spreading out the heat generated by friction while cutting, which will prolong the life of your bit.

Perfect for router template work, pattern routing, sign making, cutting boards, and detailed woodworking projects, this bit ensures professional results with every pass. The spiral flute design also improves chip evacuation, reducing heat buildup and helping maintain a smooth cutting action.

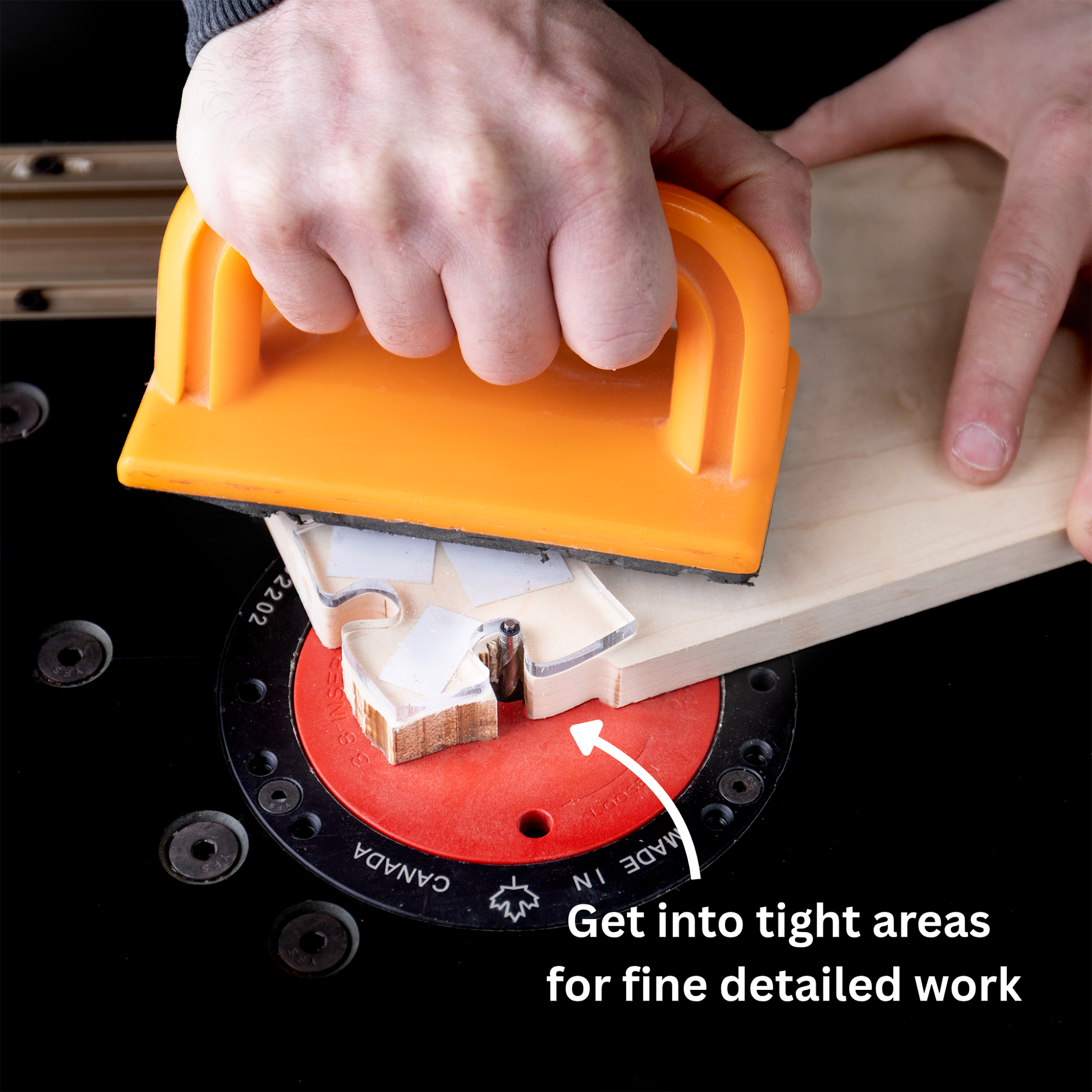

Whether you're following acrylic router templates, trimming laminates, or flush trimming workpieces, this precision spiral router bit is built to handle tight areas and small detail trimming.

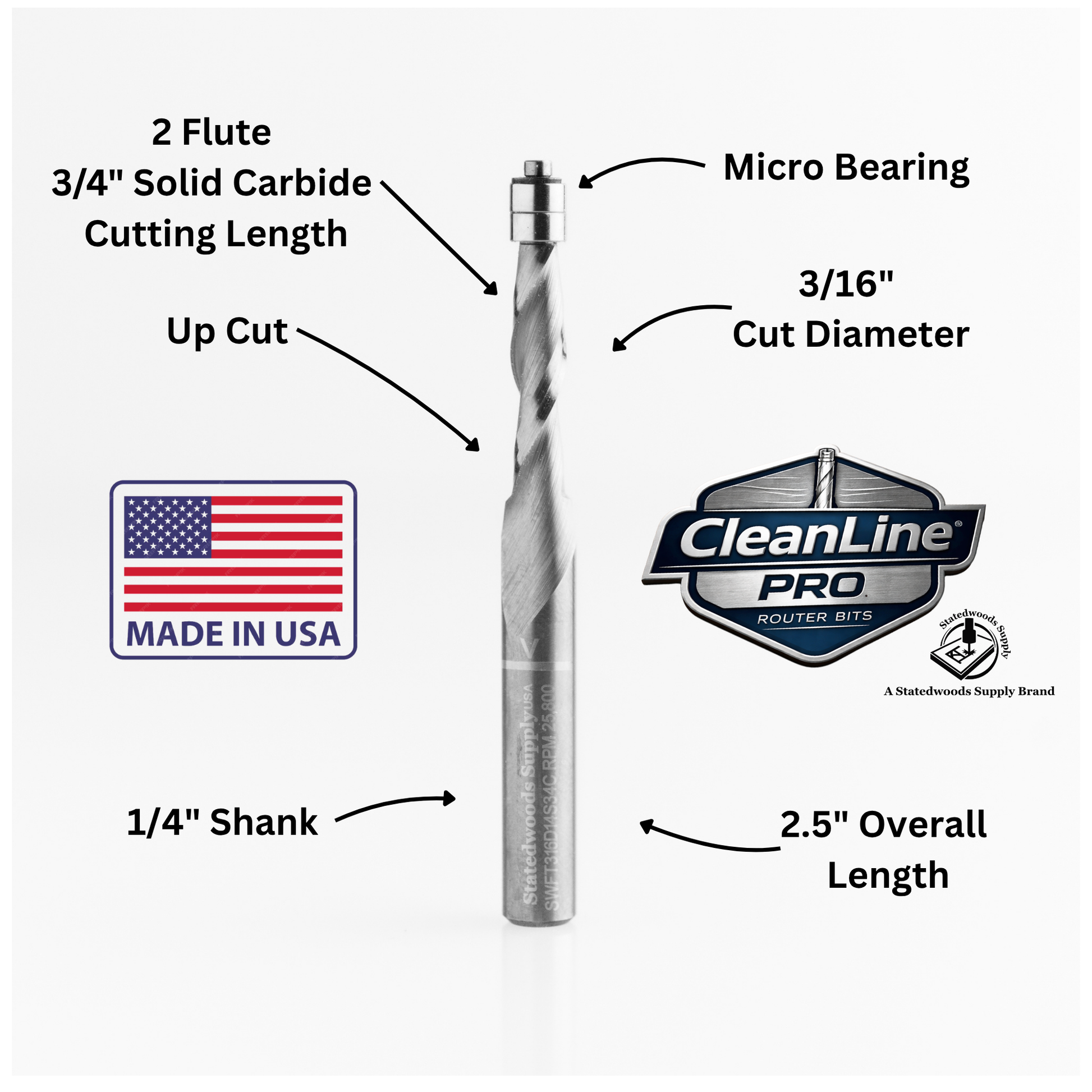

Specifications

• Cutting Diameter: 3/16"

• Flute Count: 2 Flutes

• Cut Length: 3/4"


• Shank Diameter: 1/4"


• OAL:  2.5"



• Material: Solid Carbide

• Type: Spiral Flush Trim Router Bit

• Applications: Template routing, pattern cutting, flush trimming

• Max RPM: 16,000 RPM

Key Features

• Up Cut spiral cutting geometry for cleaner cuts and reduced tear-out

• Solid carbide construction for long-lasting sharpness and durability

• 2-flute spiral design improves chip removal and cutting efficiency

• Ideal for template routing, flush trimming, and pattern work

• Works with hardwood, softwood, plywood, MDF, and composite materials

Important Safety and Care Information:  The small 3/16" diameter size can be sensitive to side load force because of its thin construction.  Be very aware of this when cutting thick material or taking too much material in one pass.  Statedwoods Supply does not warranty this bit after use do to possible improper use.  To extend the life of your bit, cut material that is less than half the bit’s diameter. Cutting on both sides of the bit generates excess heat, which can dull the bit faster and increase the risk of kickback due to the bit pulling material in the direction of spin. It’s also recommended to avoid using routers or shapers over 2 horsepower, as high-torque machines can cause damage, breakage, and shorten the bit’s lifespan.
